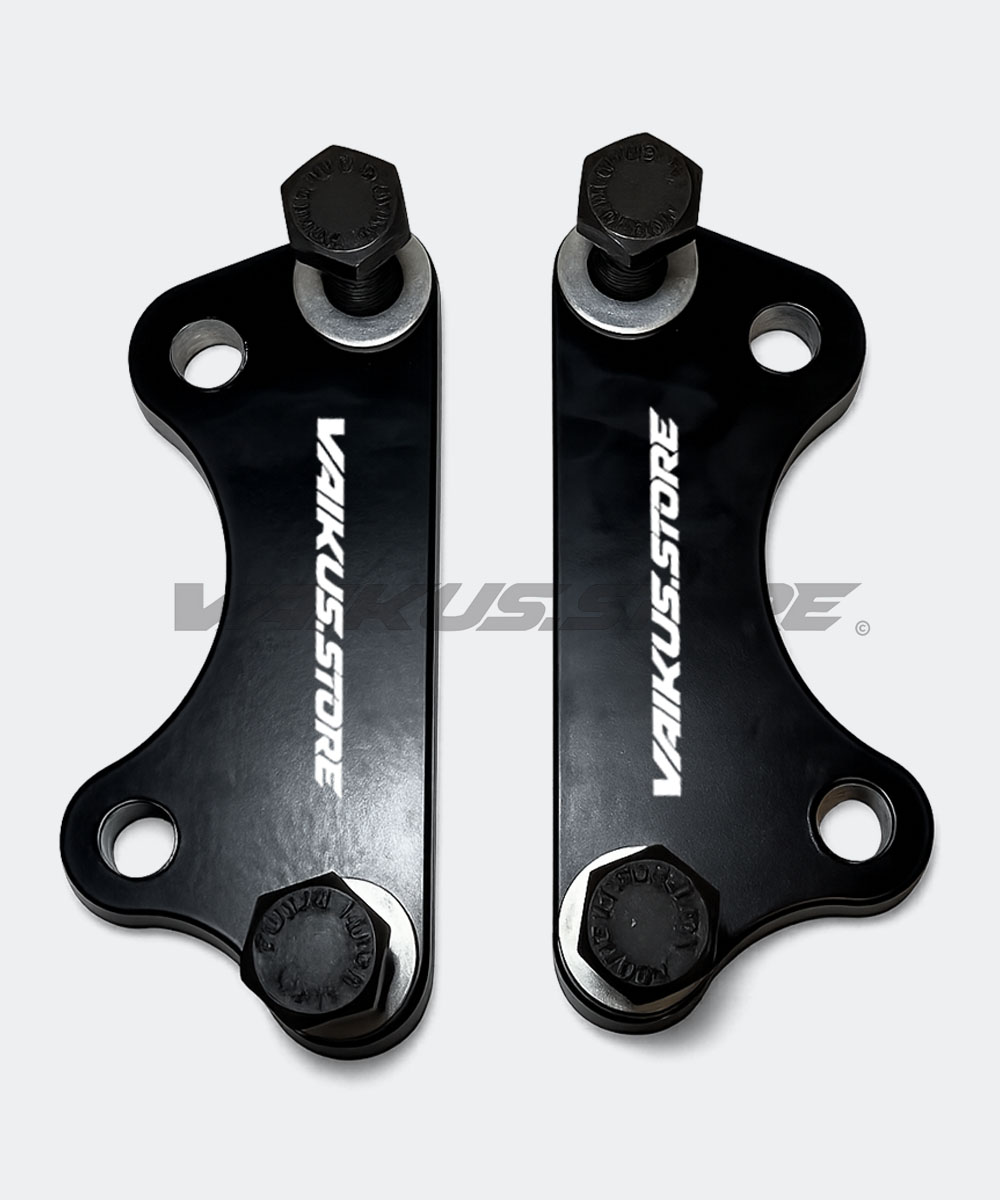

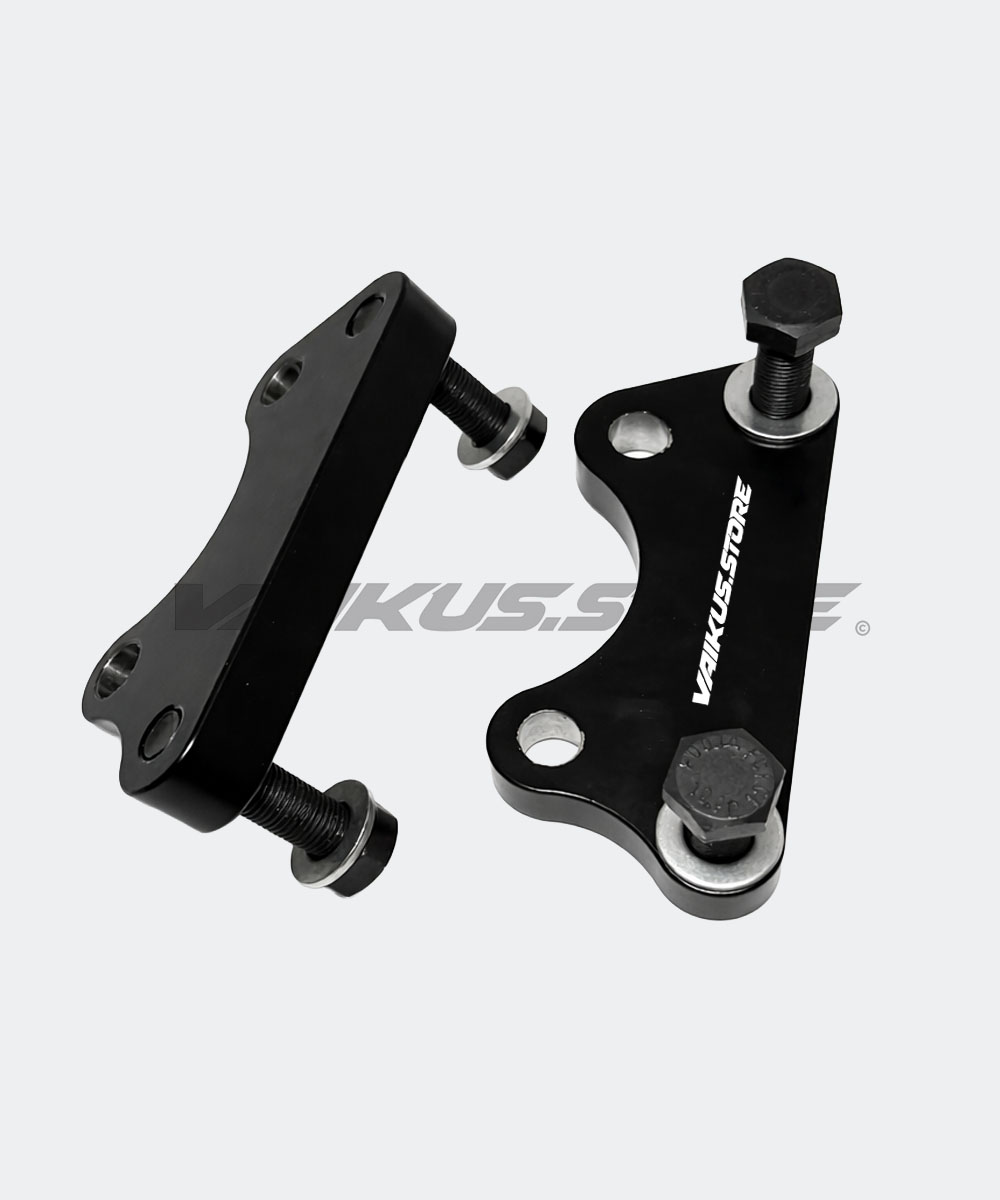

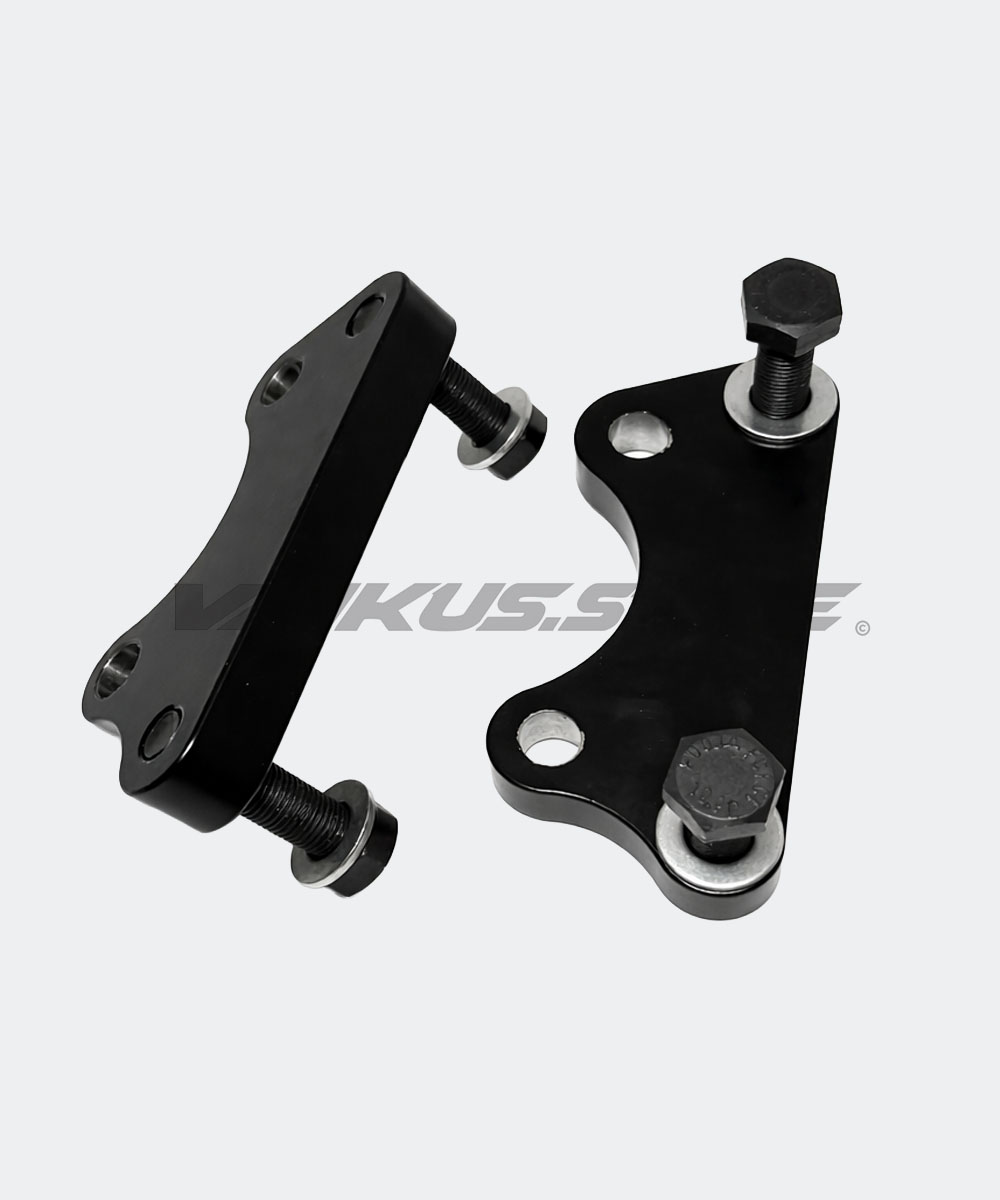

🔧 VAIKUS 4-Hole Knuckle Adapter for BMW E46
The VAIKUS 4-hole knuckle adapter is a fully bolt-on solution developed specifically for the BMW E46 chassis. Designed to support a wide range of setups, it delivers competition-proven performance while remaining perfectly usable for street applications.
This kit is ideal for drivers looking to increase steering angle, improve handling geometry, and achieve a more aggressive and controlled driving experience.
⚙️ Key Features
- 🔩 Bolt-on installation – no welding required
- 📏 30mm track width extension per side
- 📐 20mm roll center correction
- 🔄 Improved Ackermann curve
- 🔥 Up to 60° steering angle
🚗 Compatibility & Setup
- ✔ Uses OEM tie rods
- ✔ Compatible with E46 or custom LCA’s
- (Custom LCA’s may require E90 inner tie rods)
- ✔ Can be used with or without front sway bar
- ✔ 15-inch wheels compatible
🛠️ Installation Notes
- Recommended to use eccentric lollipop bushings for better wheel clearance
- Camber plates required when using longer-than-OEM control arms
🛞 Suggested Tire Sizes
For lowered ride height:
- 205/50R16
- 205/50R17
- 215/45R17
- 235/40R17
For very low ride height:
- 205/50R16
- 205/45R17
- 215/40R17
🛞 Suggested Wheel Sizes
- 16” or 17” wheels
- ET30 or lower recommended
💡 Why Choose VAIKUS?
VAIKUS adapters are built for drivers who want:
- Maximum steering angle
- Better control in drift and performance driving
- Reliable, proven geometry improvements
All while keeping installation simple and cost-effective.
